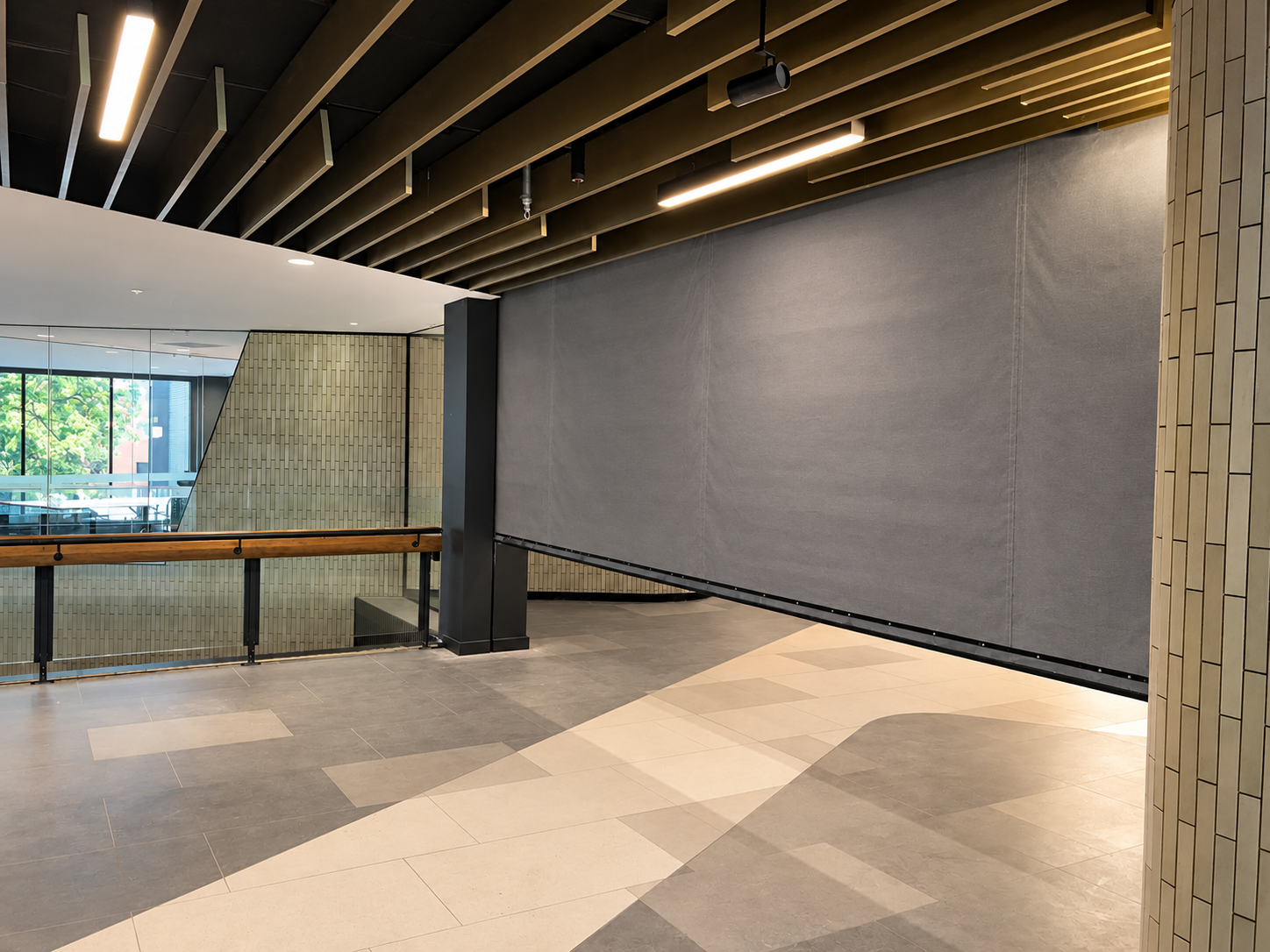

INSULATED FIRE CURTAIN CONSTRUCTION
Single roller construction only. Each roller is up to 30 meters wide and has a minimum of 70mm diameter with a wall thickness of no less than 1.5mm. Rollers wider than 4 meters are wide single rollers incorporating Wide Single Roller (WSR) head-boxing. Metalwork is zinc coated mild steel. This can be painted on site or powder coated to DULUX or RAL colours.
OPERATION

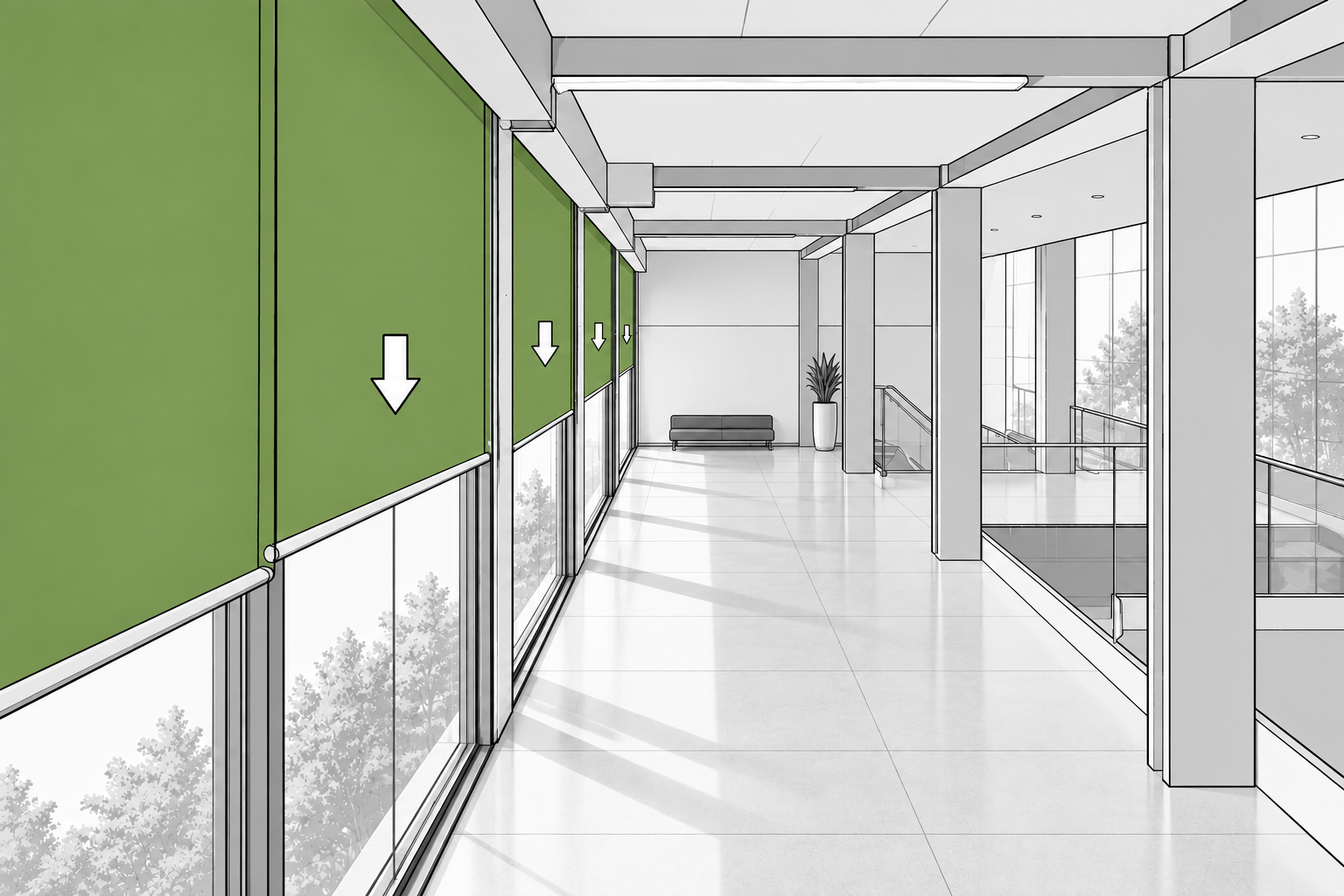

FireMaster Plus will remain retracted within its head box until it is automatically activated by the fire alarm signal. Once activated it will completely close the opening, creating a fire and smoke compartment. When activated, deployment is by gravity at a controlled speed of 0.06 – 0.15m/s. Thus making this is the only true gravity fail-safe product on the market. Testing is performed by a simple key switch. It is reset manually by pressing a reset button on the control panel. Automatic reset is available.
BOTTOM BAR
The standard bottom bar is Jumbo which is a triangular shaped bar 40mm wide. Also available is the ‘T’ bar and operable ceiling interface systems (SLAT) in 150mm and 75mm profiles.
Benefits

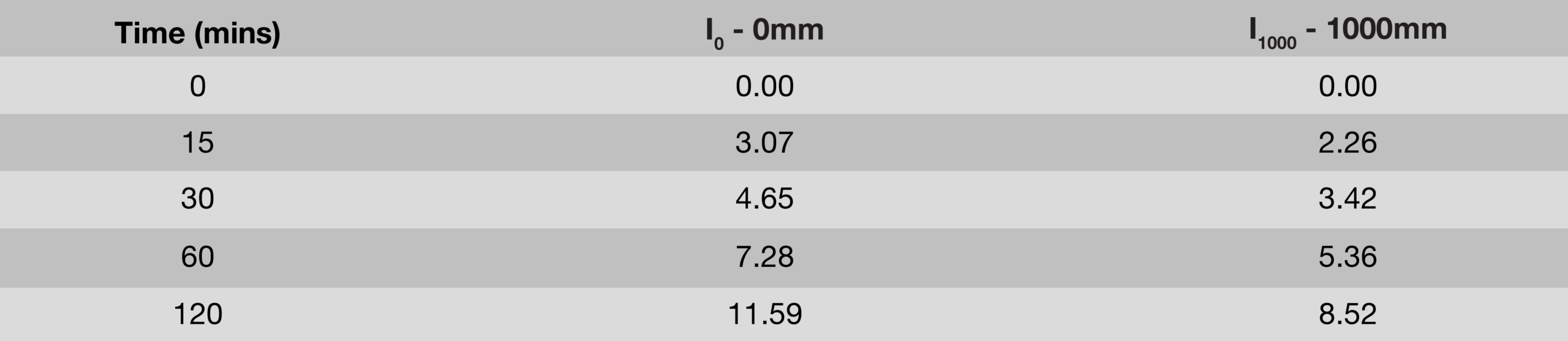

- Provides an equivalent FRL of -/120/120 when the insulation requirement is measured 50mm from the fire curtain
- Does not require sprinklers or drenchers to reduce heat
- Can be used near combustibles and means of egress where insulated barriers are normally used. Pending fire engineered solution
Learn More
For Further Reference please read the documents provided below. If you wish to obtain further information regarding our Fire Attenuation Screens, please contact us at (02) 9526 3100, or email us at sales@greenefire.com.au.
