    FireMaster Concertina

    • Fire Rating: – / 240 / –
    • Max Width:Unlimited
    • Max Height:6 Metres
    • Number of Corners: 6 Metres
    • Corner Angles :60° — 180°

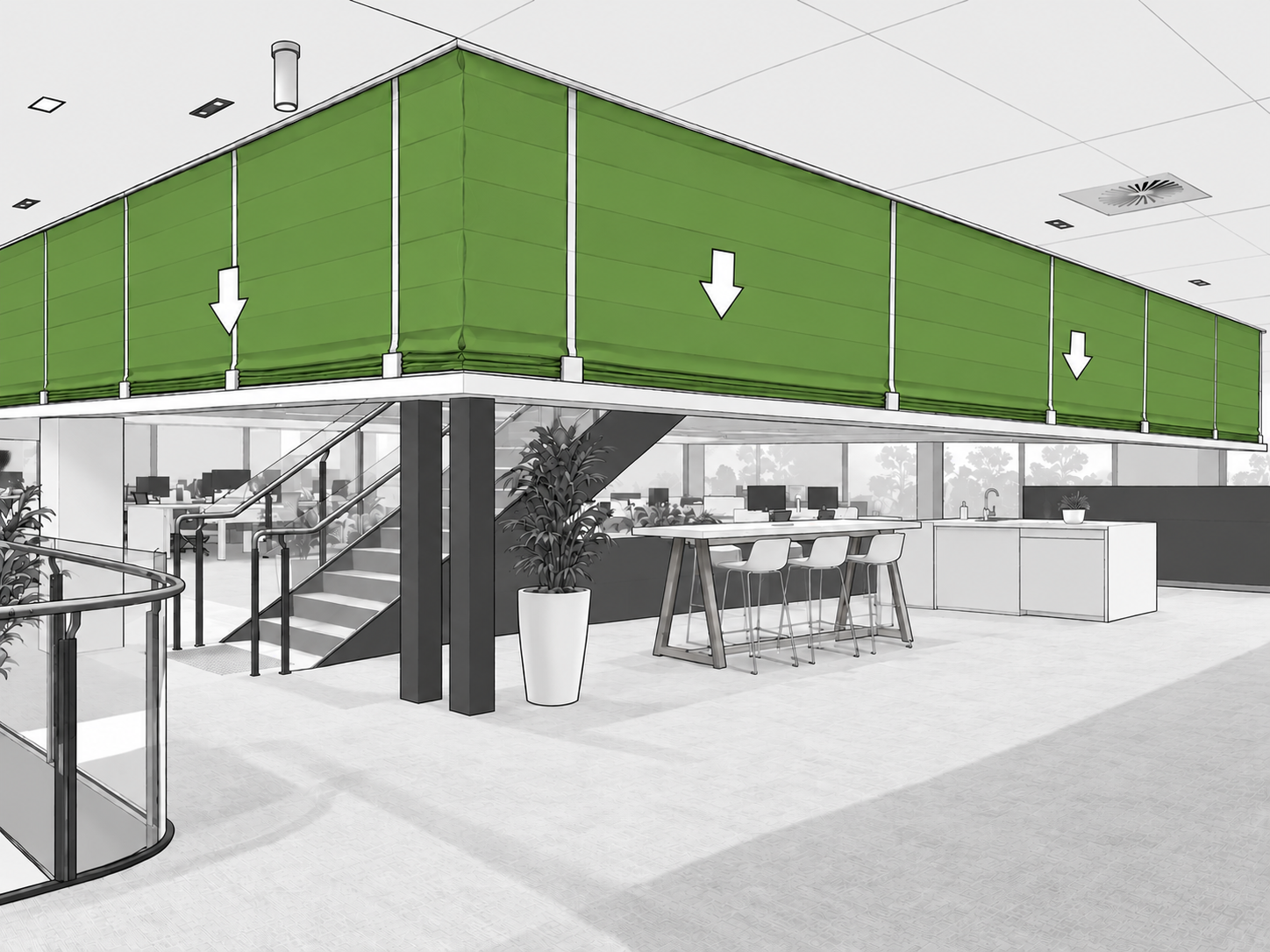

    The FireMaster Concertina fire curtain has a fire protection rating of (–/240/–). The Concertina Fire Curtain protects areas without the need for corner posts. This gives architects, consultants and specifiers a whole new way to approach buildings design. The FireMaster Concertina fire curtain offers up to 4 hour fire integrity using our revolutionary, tested folding system which can form almost any shape. The complete assembly of our FireMaster Concertina remains concealed in the ceiling space until it is required to deploy in a fire event. For an insulated concertina style fire curtain please see our FireMaster Plus Concertina.

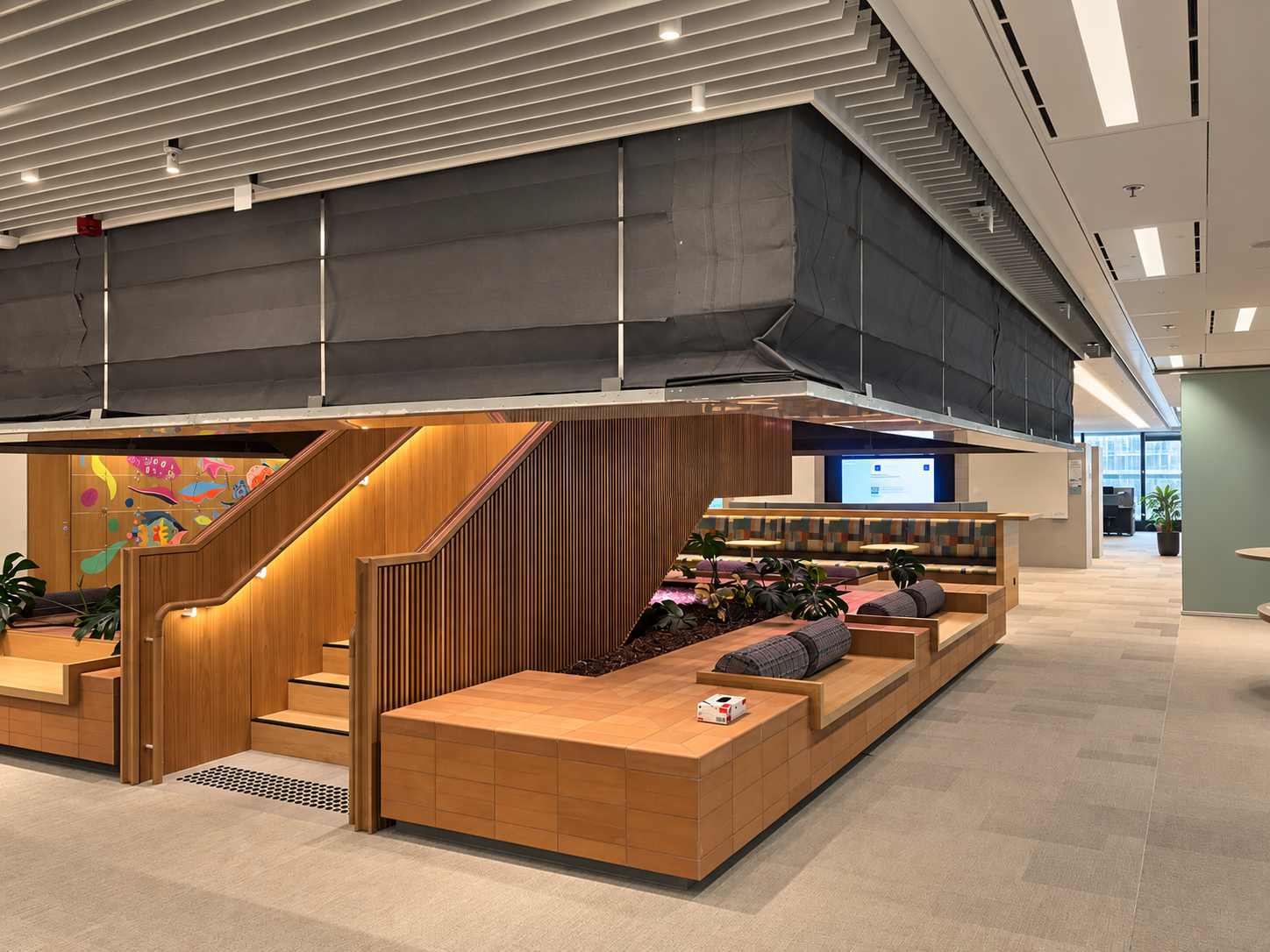

    Concertina is a folding fabric fire curtain where the complete construction is concealed in the headbox in the ceiling. The headbox traverses the perimeter of the void in a uniform design. The fabric is constructed in strips forming a pleated design. These are stitched together horizontally. The material keeps the memory of the folds as manufactured. Each corner is specifically cut, folded and constructed to create any angle from 60° to 180°. As the bottom tray deploys, these pleats unfold. During retraction of the curtain the pleats will neatly fold back to their stored position


    Standard bottom tray is 300mm wide and provides complete access into the head-box when deployed. A slim line version is available with a 170mm wide bottom tray. Metalwork is zinc coated mild steel. This can be painted on site or powder-coated to RAL colors.


    The FireMaster Concertina Fire Curtain will remain retracted within its head box until it is automatically activated by the fire alarm signal. Once activated it will completely close the opening, creating a fire and smoke compartment. Deployment is by gravity at a controlled speed of 0.06 – 0.1m/s. The only true gravity failsafe product on the market. Testing is performed by a simple key switch. It is reset manually by pressing a reset button on the control panel. Automatic reset is available.


    Full scale and full assembly fire testing to AS1530.4 providing fire integrity of 4 hours. Testing also includes motor testing and proving 12 operating cycles across 30 minutes fire exposure. No need to fire protect the head-box or side guides as the complete product is fire rated. Incident Irradiance (kW/m2)


    FireMaster Concertina Fire Curtain is assessed to AS1530.7 (2007). Standard Reference Conditions (STP) @ 200°C and 25Pa. with a leakage rate of 3.1m3/m2/hr.


    • Does not require any visible support posts at the corners
    • Have unlimited spans and drops of 6m with a small lightweight housing
    • Can be installed as a polygon, triangle, ‘L’ shaped right angles, curves, ‘Z’ shapes or even in a complete circle. Almost any other shape you may desire
    • Act as a fire separating element within the building design to prevent the passage of smoke, heat, superheated gases and fire for a predetermined period of time

    Learn More

    For Further Reference please read the documents provided below. If you wish to obtain further information regarding our Fire Attenuation Screens, please contact us at (02) 9526 3100, or email us at sales@greenefire.com.au. Alternatively, you can speak to us in person at Greene Fire Pty Limited, Unit 2, 7-11 Parraweena Road Taren Point, NSW 2229
