Door Types Available

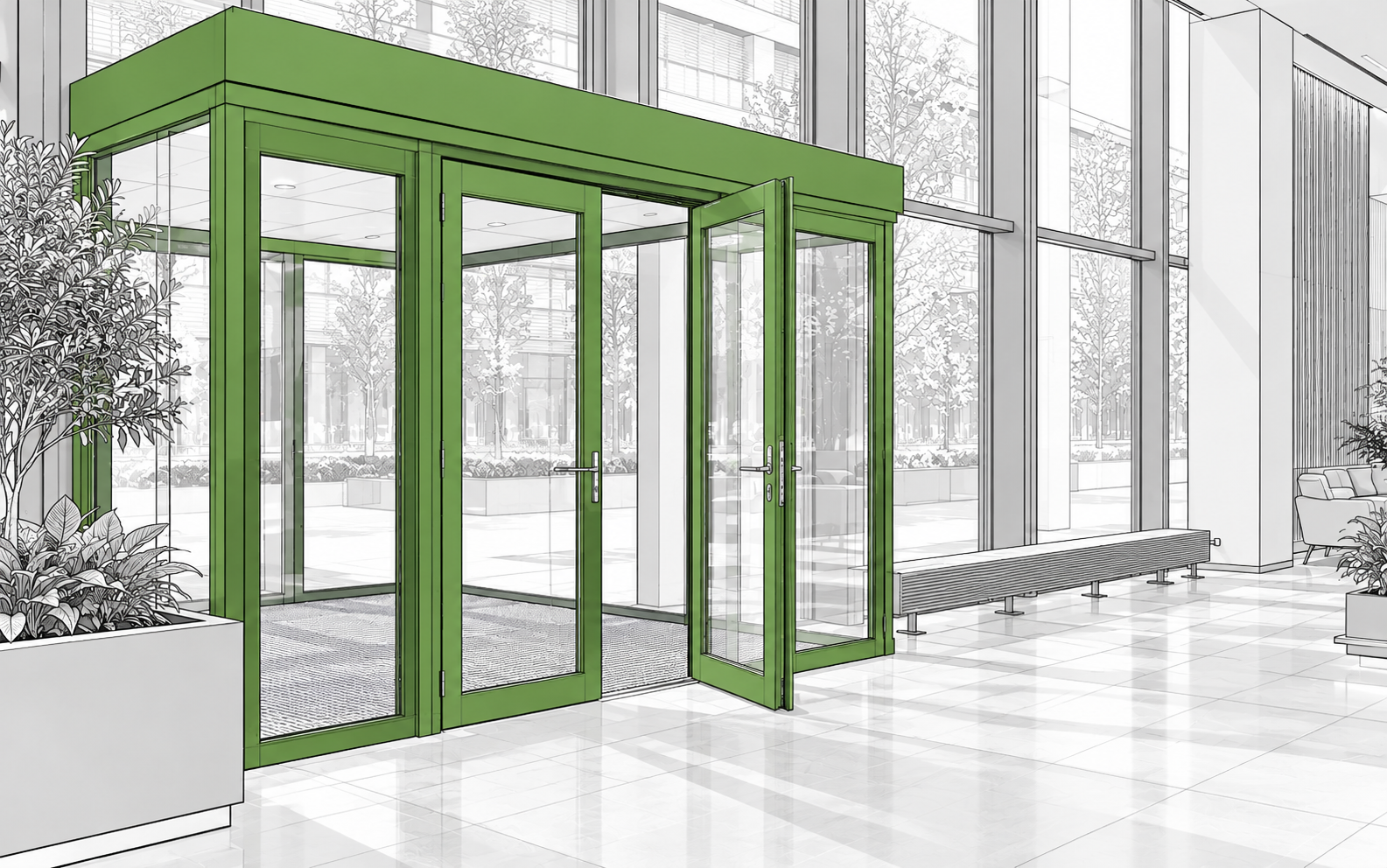

Greene Fire offers single- and double-leaf fire-rated swing glass door systems, available with 1-hour and 2-hour fire ratings.
Our Aluflam AF70 and AF91 systems combine fully glazed architectural designs with thermally broken aluminium framing, providing certified fire protection for internal and external applications.
Available systems:
- AF70 – 1 Hour Fire Rated Swing Door: FRL up to –/60/60, suitable for internal and external applications.
- AF91 – 2 Hour Fire Rated Swing Door: FRL up to –/120/90, suitable for internal and external applications.
Both systems incorporate insulated aluminium framing with a patented fire-retardant core and are available in single- and double-leaf configurations.
The appropriate system, glazing and configuration will depend on the project's fire resistance requirements and applicable test documentation.
Framing
Our Aluflam AF70 and AF91 fire-rated swing glass doors feature thermally broken aluminium framing with a patented fire-retardant insulating core. Both systems combine contemporary architectural design with certified fire protection.
Frame Specifications
| Specification | AF70 – 1 Hour | AF91 – 2 Hour |
|---|---|---|
| Door jamb profile | 61 × 70 mm | 62 × 93 mm |
| Door leaf profile | 70 × 89 mm | 80 × 93 mm |
| Maximum FRL | –/60/60 | –/120/90 |
| Configurations | Single and double leaf | Single and double leaf |
| Finish options | PPC or anodised | PPC or anodised |
Both systems offer slim aluminium profiles, large glazed areas, non-corrosive construction and compatibility with architectural door hardware. Matching sidelights and top lights can also be incorporated, subject to system requirements.
How Does The Glass Work?
Aluflam fire-rated swing doors incorporate specialised fire-resistant glazing designed to maintain fire compartmentation while providing clear visibility and natural light.
The glazing is selected according to the required Fire Resistance Level (FRL), with different configurations available for internal and external applications.
AF70 – 1 Hour Fire Rated Swing Doors
Available glazing options include:
-
Pyrobel 16: FRL –/60/– up to –/60/30.
-
Pyrobel 25: FRL –/60/– up to –/60/60.
-
Pyrostop 60 101: FRL –/60/– up to –/60/60.
-
Contraflam 120 Lite: FRL –/60/– up to –/60/30.
-
External glazing options include Pyrobel 16EG, Pyrobel 25EG, Pyrostop 60 101 DGU and Contraflam ClimaPlus insulated glazing units.
AF91 – 2 Hour Fire Rated Swing Doors
Available glazing options include:
-
Contraflam Lite 120: FRL –/120/30.
-
Contraflam 90: FRL –/120/90.
-
Contraflam Lite 120 ClimaPlus IGU: FRL up to –/120/30 for external applications.
Fire-resistant glazing helps prevent the passage of flames and hot gases, while insulating configurations also limit heat transfer to the non-fire side.
The final glazing selection must be compatible with the tested door assembly and the project's fire resistance requirements.
Benefits
-
1-hour and 2-hour fire-rated swing door systems.
-
Fire Resistance Levels up to –/120/90.
-
Single- and double-leaf configurations.
-
Fully glazed architectural appearance.
-
Thermally broken aluminium framing.
-
Non-corrosive construction.
-
PPC or anodised finish options.
-
Large glass panels for improved visibility and natural light.
-
Suitable for internal and external applications.
-
Compatible with architectural door hardware.
-
Can integrate with matching fire-rated sidelights and top lights.
-
AF70 doors can achieve full-height glazing up to 3500 mm, subject to configuration.
-
AF91 doors can achieve full-height glazing up to 2787 mm, subject to configuration.
-
Designed for use in commercial and architectural building applications.
Learn More
For Further Reference please read the documents provided below. If you wish to obtain further information regarding our Fire Attenuation Screens, please contact us at (02) 9526 3100, or email us at sales@greenefire.com.au.
