    SafeScape AC8000

    Download PDF
    Download Specification
    Download Drawings
    • Fire Rating:– / 180 / –
    • Max Width:Unlimited
    • Max Height: 7 Metres

    SafeScape AC8000 Series are side folding fire shutters including operable fire doors. The SafeScape AC8000 Side Folding Fire Shutters Series is available in either manual or motor operated designs and can be provided with or without swinging egress doors. The units are made up of either 175mm or 350mm panels requiring a 230mm or 395mm pocket profile respectively. AC8900 combines accordion folding, mechanical closing, dual egress with conventional swing door exiting in one assembly. The head track can follow almost any shape. Often, floor tracks are not required with this unit.

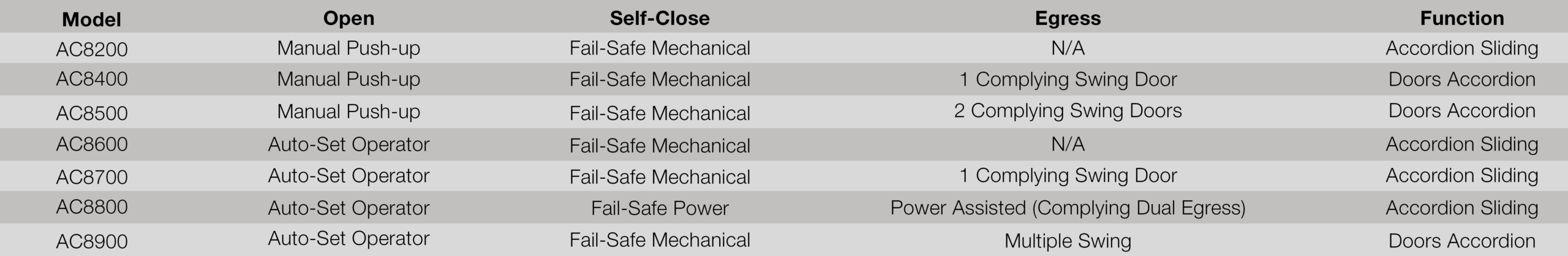

    Side Folding Fire Shutters Operation

    Auto-Set automatic resetting. Fail-Safe Design – automatic self-closing mechanism does not require power operation. Manual operation for assemblies up to 3m x 3m.

    Ratings

    Up to 3-hour rated to UL 10B. Smoke & Draft labeled UL 1784.

    Egress

    Fixed complying swing doors. Power assisted exit device (AC8800 only).

    Finishes

    McKeon Sterling Gray. Powder coat. Stainless steel.

    Benefits

    • Reduced pocket depth due to the folded steel
    • Single narrow head track
    • Can navigate around tight curves
    • Fail-safe mechanical closing incorporating swing egress doors

    Learn More

    For Further Reference please read the documents provided below. If you wish to obtain further information regarding our Fire and Smoke Curtains, please contact us at (02) 9526 3100, or email us at sales@greenefire.com.au. Alternatively, you can speak to us in person at Greene Fire Pty Limited, find your local office here.
