    • Fire Rating :up to – / 240 /
    • Max Width :30 Metres
    • Max Height:Up to 9 Metres

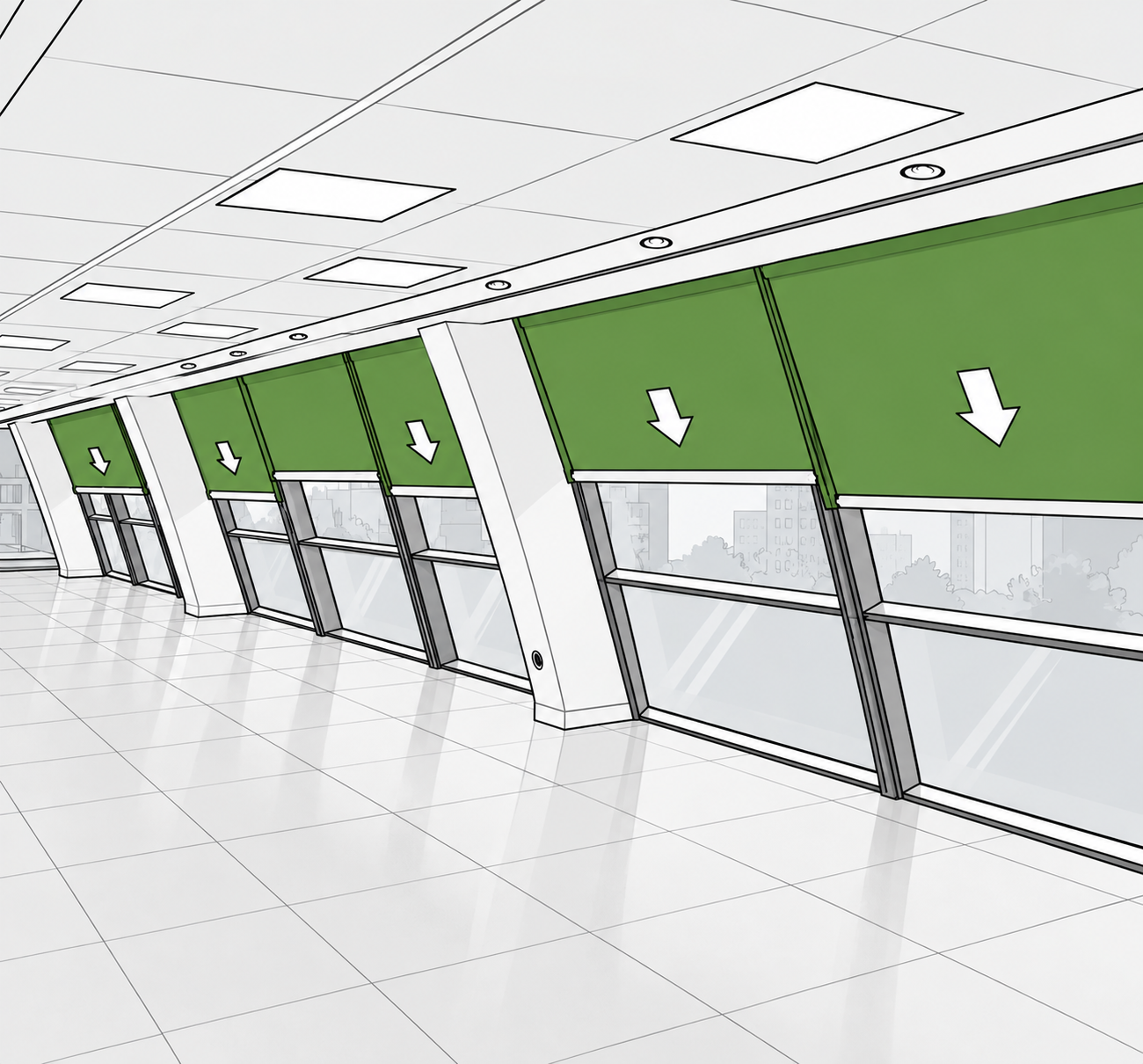

    FireMaster is an uninsulated active fire curtain barrier that vertically protects openings in fire rated walls or can be used to completely replace non-load bearing fire rated walls. The fire barrier is made of woven stainless steel reinforced glass fibre with a reflective coating, which provides smoke/fire containment and fire deceleration. FireMaster Fire Curtains are designed as barriers to prevent the spread of fire in accordance with AS1530.4. To protect means of escape or where there are combustibles in close proximity see FireMaster Plus.

    FIRE CURTAIN CONSTRUCTION

    Each roller is up to 5m wide with multiple roller construction up to 30m wide. Wide Single Roller (WSR) construction is available up to 17m wide. Metalwork is zinc coated mild steel. This can be painted on site or powder coated to DULUX or RAL colours.

    OPERATION

    FireMaster will remain retracted within its head box until it is automatically activated by the fire alarm signal. Once activated it will completely close the opening, creating a fire and smoke compartment. Deployment is by gravity at a controlled speed of 0.06 – 0.15m/s. The only true gravity failsafe product on the market. Testing is performed by a simple key switch. It is reset manually by pressing a reset button on the control panel. Automatic reset is available.

    Fire Rating

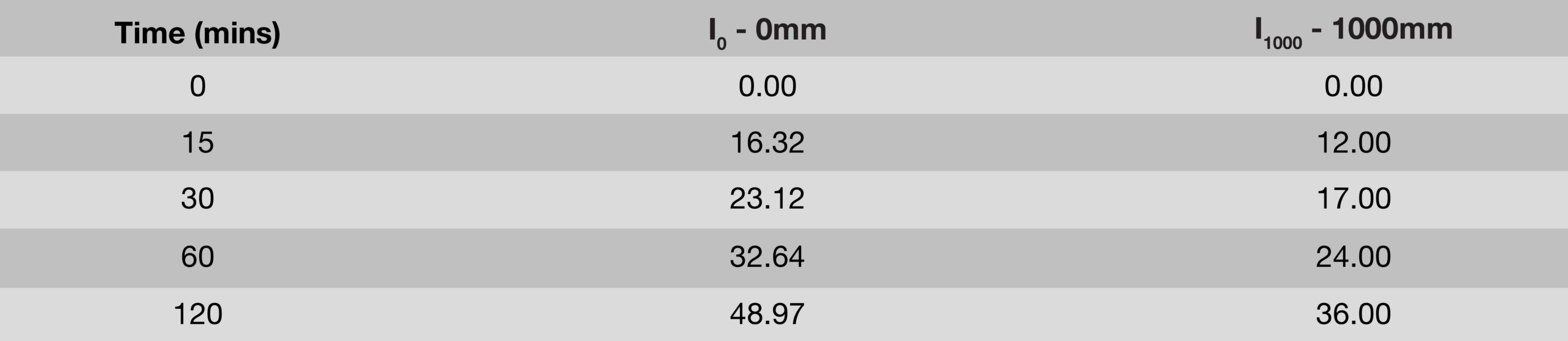

    Up to 4 hours fire integrity to AS1530.4. Assessment report EXOVA EWFA-RIR-21553. Incident Irradiance (kW/m2)

    Bottom Bar

    The standard bottom bar is Jumbo which is a triangular shaped bar 40mm wide. Also available is the ‘T’ bar and operable ceiling interface systems (SLAT) in 150mm and 75mm profiles.

    Benefits

    • Small lightweight head boxing
    • Can fire protect very large open spaces without the need to heavy structural supports
    • Can easily retrofit into heritage buildings
    • Is true Fail-Safe by gravity which means it will work when required
    • Patented TOTAL fail-safe by gravity which means it will work when required

    Learn More

    For further reference, please read the documents provided at the top of the page. If you wish to obtain further information regarding our products or a quote, please contact us at (02) 9526 3100 for our Sydney branch and (03) 8526 1999 for our Melbourne branch, or email us at sales@greenefire.com.au. Alternatively, you can speak to us in person at Greene Fire Pty Limited, find your local office here.
